Just-In-Time Access for AI Agents: Building a ZSP Gateway in Azure

AI coding assistants may need scoped deployment permissions. Backup automation needs Key Vault secrets at 2 AM. Security scanners need Reader access on a schedule.

The easy answer is standing permissions—give each service principal what it needs and move on. But that can leave non-human identities with 24/7 access to sensitive resources even when a workload needs the target privilege only during a short execution window.

Zero Standing Privilege (ZSP) flips this for the subject identities: the requesting service principals and administrators start without the target roles. Permissions are granted just-in-time, scoped to the task, and scheduled for revocation. Operators must verify removal and effective access.

This post walks through building a ZSP gateway using Azure Functions that manages time-bounded access for AI agents, automation workflows, and service principals. We’ll cover the NHI access pattern in detail, then briefly show how the same gateway handles human admins too.

Tier 0 boundary: the gateway itself retains tenant-wide RoleManagement.ReadWrite.Directory, which can assign any directory role, including Global Administrator, plus scoped Azure role-management authority. This lab moves standing privilege off the requestors and into one audited workload; it does not eliminate standing privilege. Treat the Function App, its deployment path, and its managed identity as Tier 0.

Hands-on Lab: Deployment steps, architecture notes, and supporting assets are in the companion lab.

Why NHI Security Matters Now

Non-human identities span service principals, managed identities, workload identities, and agent identities. Their prevalence and privilege vary by tenant, so inventory the identities and effective permissions in your own environment instead of applying a generic human-to-machine ratio. Microsoft’s non-human identity inventory provides tenant-specific views of risky, highly privileged, overprivileged, and unused identities.

• AI coding agents requesting temporary access to deploy infrastructure
• Backup automation needing Key Vault secrets only during backup windows
• CI/CD pipelines requiring Contributor access for deployments
• Security scanners needing read access on a schedule
• Agentic workflows chaining multiple Azure services together

Standing access can outlive the task by hours or days.

For example, a service principal that runs a five-minute nightly backup but keeps its Key Vault role all day has 23 hours and 55 minutes of standing access outside that task. A compromised AI agent with a permanent Contributor role can affect every resource in that assignment’s scope.

The Risk Surface

Microsoft PIM is centered on interactive human and group activation workflows; this lab does not rely on an NHI self-activation path. Instead, its audited gateway grants an approved service principal a deterministic, time-bounded Azure RBAC assignment and owns the later revocation.

Architecture: ZSP Gateway

The ZSP gateway is an Azure Function App that brokers the lab’s target entitlements. Its access-request endpoints are:

• /api/nhi-access - Grants time-bounded Azure RBAC role assignments to service principals
• /api/admin-access - Grants temporary Entra group membership to human admins

The additional /api/access-status/{id} route returns a restricted authenticated status projection. Both access patterns use the v2 Azure Durable Functions saga for policy admission, preflight, grant, wait, and revoke. The HTTP trigger records the lifecycle first; it never grants privilege before Durable history exists.

Infrastructure

The lab deploys with Bicep + PowerShell:

• Azure Function App (Flex Consumption, Python 3.11) with system-assigned managed identity
• Key Vault and Storage Account as target resources for demo
• Application Insights and Log Analytics for observability
• Data Collection Endpoint + Rule (DCE/DCR) for custom audit logging to ZSPAudit_CL
• Entra ID groups with directory role assignments (for human admin path)
• Backup service principal with zero initial permissions (for NHI demo)

The managed identity has GroupMember.ReadWrite.All, Directory.Read.All, and RoleManagement.ReadWrite.Directory Graph API permissions, User Access Administrator on the resource group for managing role assignments (in production, consider the more restrictive Role Based Access Control Administrator role), and Monitoring Metrics Publisher on the DCR for sending audit logs. The RoleManagement.ReadWrite.Directory permission is required because the ZSP groups are role-assignable-standard group membership permissions (GroupMember.ReadWrite.All) are insufficient for managing membership of role-assignable groups.

Audit ingestion is a privilege-safety dependency, not optional telemetry. The /api/health readiness endpoint returns HTTP 503 and status: degraded when the DCR endpoint or immutable DCR ID is missing or malformed. Admission, scheduled requests, and grant activities repeat that check before privilege changes. Configuration also binds ingestion to the exact DCE resource, and the runtime restricts destinations to Azure Monitor origins without redirects. This checks configuration and transport boundaries; health does not send a test event or prove Log Analytics delivery.

NHI Access: The Core Pattern

How NHI Access Works

1. A workflow (timer, API call, or AI agent) calls /api/nhi-access
2. The gateway validates allowlists and starts a Durable lifecycle
3. The endpoint returns HTTP 202 with a restricted status URL; this records acceptance, not active access
4. The v2 orchestration records policy admission; preflight/grant activities recheck it before creating the scoped assignment, reporting active state, and scheduling revocation
5. Activities write correlated audit events; transport or cleanup failures require monitoring and recovery

The Request

Use the canonical smoke test for manifest and live ARM ownership checks. For these illustrative Bash calls, first verify FUNCTION_URL against the exact owned Function resource hostname and securely load its ordinary host Function key into FUNCTION_KEY. Bash and jq are required. The helpers below validate the response URL and bound polling.

# Reuse these helpers for NHI and admin responses on this verified Function origin.
lifecycle_status_url() {
  local id url
  id="$(printf '%s' "$1" | jq -er '.id')" || return 1
  [[ "$id" =~ ^[A-Za-z0-9_-]{1,100}$ ]] || return 1
  url="$(printf '%s' "$1" | jq -er '.statusQueryGetUri')" || return 1
  [[ "$url" == "${FUNCTION_URL%/}/api/access-status/$id" ]] || return 1
  printf '%s\n' "$url"
}

wait_for_lifecycle() {
  local url="$1" target="$2" deadline=$((SECONDS + $3)) status id runtime
  id="${url#"${FUNCTION_URL%/}/api/access-status/"}"
  [[ "$id" =~ ^[A-Za-z0-9_-]{1,100}$ ]] || return 1
  [[ "$url" == "${FUNCTION_URL%/}/api/access-status/$id" ]] || return 1
  while (( SECONDS < deadline )); do
    sleep 2
    status="$(curl --fail --silent --show-error --connect-timeout 10 --max-time 30 \
      --max-redirs 0 -H "X-Functions-Key: $FUNCTION_KEY" "$url")" || return 1
    runtime="$(printf '%s' "$status" | jq -er '.runtimeStatus | strings')" || return 1
    case "$runtime" in
      Failed|Terminated|Canceled|Suspended) return 1 ;;
      Completed) [[ "$target" == "revoked" ]] || return 1 ;;
      Running|Pending) ;;
      *) return 1 ;;
    esac
    if [[ "$(printf '%s' "$status" | jq -r '.customStatus.status // empty')" == "$target" ]]; then
      printf '%s\n' "$status"
      return 0
    fi
  done
  printf 'Lifecycle did not reach %s before the timeout; inspect operator history and entitlements.\n' "$target" >&2
  return 1
}

NHI_RESPONSE="$(curl --fail --silent --show-error --connect-timeout 10 --max-time 60 --max-redirs 0 -X POST "$FUNCTION_URL/api/nhi-access" \
  -H "Content-Type: application/json" \
  -H "x-functions-key: $FUNCTION_KEY" \
  -d '{
    "sp_object_id": "BACKUP_SP_OBJECT_ID",
    "scope": "/subscriptions/.../providers/Microsoft.KeyVault/vaults/<keyvault-name>",
    "role": "Key Vault Secrets User",
    "duration_minutes": 10,
    "workflow_id": "nightly-backup"
  }')" || exit 1

STATUS_URL="$(lifecycle_status_url "$NHI_RESPONSE")" || exit 1

The HTTP 202 response preserves the polling field without a reusable management capability:

{
  "id": "b10a200905204d0bb10d54fc4e1a73e0",
  "status": "accepted",
  "statusQueryGetUri": "https://<project>-gw-<suffix>.azurewebsites.net/api/access-status/b10a200905204d0bb10d54fc4e1a73e0"
}

Poll the validated status URL with X-Functions-Key and do not use the entitlement until the custom status is active:

STATUS="$(wait_for_lifecycle "$STATUS_URL" active 90)" || exit 1
printf '%s' "$STATUS" | jq '{runtimeStatus, customStatus}'
ASSIGNMENT_ID="$(printf '%s' "$STATUS" | jq -er '.customStatus.grants[0].assignment_id')" || exit 1

customStatus.status == "active" means the lifecycle recorded a grant; verify the exact returned assignment ID in Azure before relying on it. A failed, terminated, unavailable, or timed-out lifecycle requires investigation and does not prove absence. The lifecycle attempts owned revocation at expiry; verify both revoked status and the exact entitlement’s absence.

Assignment state and effective resource access are separate checks. Microsoft documents propagation delays for Azure RBAC grants and removals, commonly up to ten minutes, with longer cache behavior for some managed-identity membership scenarios. The timer bounds the gateway’s assignment lifecycle; it does not guarantee that every resource starts or stops authorizing requests at that exact second. Verify permitted access after the grant and denied access after revocation using the actual target resource and client.

The Grant Logic

The HTTP handler validates and schedules only. Inside the Durable lifecycle, a grant activity creates the role assignment via the Azure SDK; the orchestration owns the absolute expiry and compensating revocation:

# Architecture pseudocode only. The pinned lab adds deterministic assignment
# names, exact scope/role validation, absence preflight, and compensating cleanup.

from azure.mgmt.authorization import AuthorizationManagementClient
from azure.mgmt.authorization.models import RoleAssignmentCreateParameters
from azure.identity import DefaultAzureCredential

ROLE_DEFINITIONS = {
    "Key Vault Secrets User": "4633458b-17de-408a-b874-0445c86b69e6",
    "Key Vault Reader": "21090545-7ca7-4776-b22c-e363652d74d2",
    "Storage Blob Data Reader": "2a2b9908-6ea1-4ae2-8e65-a410df84e7d1",
    "Storage Blob Data Contributor": "ba92f5b4-2d11-453d-a403-e96b0029c9fe",
    "Reader": "acdd72a7-3385-48ef-bd42-f606fba81ae7",
}

async def grant_nhi_access(
    sp_object_id, scope, role_name, duration_minutes, workflow_id,
    assignment_name, expires_at
):
    credential = DefaultAzureCredential()
    subscription_id = scope.split("/")[2]  # extract from scope
    auth_client = AuthorizationManagementClient(credential, subscription_id)

    role_guid = ROLE_DEFINITIONS[role_name]
    full_role_id = f"/subscriptions/{subscription_id}/providers/Microsoft.Authorization/roleDefinitions/{role_guid}"

    assignment = auth_client.role_assignments.create(
        scope=scope,
        role_assignment_name=assignment_name,
        parameters=RoleAssignmentCreateParameters(
            role_definition_id=full_role_id,
            principal_id=sp_object_id,
            principal_type="ServicePrincipal"
        )
    )

    return {
        "status": "granted",
        "assignment_id": assignment.id,
        "assignment_name": assignment_name,
        "sp_object_id": sp_object_id,
        "scope": scope,
        "role": role_name,
        "expires_at": expires_at,
        "duration_minutes": duration_minutes,
        "workflow_id": workflow_id
    }

This shortened example explains the SDK call, not the deployable safety contract. The pinned nhi_access.py enforces exact entitlement and collision rules; policy allowlists are checked by the gateway in function_app.py. It consumes the deterministic assignment name and absolute expiry supplied by the Durable lifecycle, and returns the evidence needed for compensation. The broker holds the role-management permission; callers use its configured allowlists rather than receiving that credential. A shared Function key does not bind a caller to a particular user or service principal: its holder can request the lab’s allowed targets. Production needs authenticated caller identity mapped to authorization policy. Unrelated baseline permissions remain outside this lab’s guarantee.

Scheduled Access with Timer Triggers

For predictable workloads like nightly backups, the gateway uses timer-triggered functions:

# Architecture pseudocode only; use the pinned v2 timer for full policy admission.
@app.timer_trigger(schedule="%BACKUP_JOB_SCHEDULE%", arg_name="timer", run_on_startup=False)
@app.durable_client_input(client_name="client")
async def backup_job_access_grant(timer: func.TimerRequest, client):
    """Record one lifecycle for the backup bundle; grant nothing here."""
    duration = int(os.environ.get("BACKUP_JOB_DURATION_MINUTES", 35))
    grants = []
    for scope, role in (
        (os.environ["KEYVAULT_RESOURCE_ID"], "Key Vault Secrets User"),
        (os.environ["STORAGE_RESOURCE_ID"], "Storage Blob Data Contributor"),
    ):
        grants.append(validate_nhi_request({
            "sp_object_id": os.environ["BACKUP_SP_OBJECT_ID"],
            "scope": scope,
            "role": role,
            "duration_minutes": duration,
            "workflow_id": "nightly-backup",
        }, _maximum_access_duration()))
    instance_id = await client.start_new(
        "access_lifecycle_orchestrator_v2",
        client_input={
            "api_version": 2,
            "access_type": "nhi_bundle",
            "duration_minutes": duration,
            "workflow_id": "nightly-backup",
            "grants": grants,
        },
    )

The timer validates the full bundle and starts one durable saga; it does not make out-of-band grants. The pattern is still to open the access window shortly before the job and revoke after the configured duration, aiming to leave the service principal without those target roles outside the job window. Verify cleanup and effective access; the schedule alone is not evidence of either.

Automatic Revocation

Grant and revocation live in the same Durable Functions orchestrator:

# Architecture pseudocode only. The pinned orchestrator handles both single
# and bundled grants, audit fail-closed behavior, compensation, and ownership.
@app.orchestration_trigger(context_name="context")
def access_lifecycle_orchestrator_v2(context: df.DurableOrchestrationContext):
    request = yield context.call_activity_with_retry(
        "authorize_access_lifecycle_activity", retry_options, context.get_input()
    )
    expiry_time = context.current_utc_datetime + timedelta(
        minutes=request["duration_minutes"]
    )

    context.set_custom_status({"status": "granting"})
    grant = yield context.call_activity_with_retry(
        "grant_nhi_access_activity", retry_options, request
    )
    context.set_custom_status({
        "status": "active",
        "expires_at": expiry_time.isoformat(),
        "grants": [grant],
    })
    yield context.create_timer(expiry_time)
    context.set_custom_status({"status": "revoking"})
    yield context.call_activity_with_retry(
        "revoke_role_assignment_activity", retry_options, grant
    )
    context.set_custom_status({"status": "revoked"})

The snippet is intentionally reduced to the lifecycle shape. The pinned orchestrator is authoritative for bundle compensation, audit fail-closed checks, and admin entitlement ownership. It derives an absolute expiry_time from context.current_utc_datetime, which remains deterministic during replay. With retained history and compatible handlers, Durable Functions can replay recorded grants and timers after a Function restart. Deleting history, retiring a handler with active instances, terminating an orchestration, losing permissions, or an ownership conflict can still strand a grant. The migration runbook below must be completed before replacing legacy handlers. Durable Functions timers in Python have a maximum duration of 6 days—more than enough for access windows measured in minutes or hours, but worth knowing if you extend durations.

Keep expiry timestamps timezone-aware and derive them from the deterministic orchestration clock. The pinned implementation uses asynchronous activities and normalizes either a JSON string or a decoded object with _activity_payload; it does not create an event loop inside a synchronous activity. This reduced example illustrates that calling convention:

@app.activity_trigger(input_name="activityPayload")
async def revoke_role_assignment_activity(activityPayload):
    input_data = _activity_payload(activityPayload)
    result = await revoke_nhi_access(assignment_id=input_data["assignment_id"])
    # Full source records success/failure with LifecycleId and EntitlementId.
    return result

Use the complete pinned activity for deployment: the reduced snippet omits its correlated success/failure audit handling. A mandatory str annotation is not part of that implementation.

AI Agent Integration Patterns

The /api/nhi-access endpoint is designed for machine callers. In the examples below, request_access_and_wait sends the function key in x-functions-key, accepts only HTTP 202, polls the returned status URL, and returns only after customStatus.status becomes active. A production helper must fail closed on failed, terminated, or unexpectedly completed instances.

These are integration sketches, not requests accepted by the default lab configuration. The gateway separately validates principal, role, scope, and exact workflow-ID allowlists. ALLOWED_WORKFLOW_IDS defaults to manual-test and nightly-backup; use reviewed stable workflow IDs and explicitly configure the intended scope and identity before adapting these examples. Per-session or per-incident IDs do not automatically match that allowlist, and should not be used to bypass it.

Pattern 1: AI Coding Agent Deploying Infrastructure

An AI coding assistant may need temporary deployment access. Contributor is not enabled by the lab’s default role allowlist; add any elevated custom role to both the role-definition map and deployment allowlist only after constraining scope and reviewing the threat model:

# AI agent workflow
async def deploy_infrastructure(agent_context):
    await request_access_and_wait({
        "sp_object_id": agent_context.service_principal_id,
        "scope": f"/subscriptions/{SUB_ID}/resourceGroups/{RG_NAME}",
        "role": "Approved Deployment Custom Role",
        "duration_minutes": 30,
        "workflow_id": f"agent-deploy-{agent_context.session_id}"
    })

    # Run only after durable status confirms active access.
    await run_bicep_deployment(agent_context.template)

Pattern 2: Security Scanner on Schedule

A scanning agent needs Reader access across resource groups:

# Timer trigger starts a durable lifecycle, waits for active, then scans.
@app.timer_trigger(schedule="0 0 */6 * * *", arg_name="timer")  # Every 6 hours
async def security_scan_access(timer):
    for rg in RESOURCE_GROUPS_TO_SCAN:
        await request_access_and_wait({
            "sp_object_id": SCANNER_SP_ID,
            "scope": rg,
            "role": "Reader",
            "duration_minutes": 60,
            "workflow_id": "security-scan",
        })

Pattern 3: Event-Driven Access

An AI agent responds to incidents and needs temporary elevated access:

# Event Grid trigger when security alert fires
@app.event_grid_trigger(arg_name="event")
async def incident_response_access(event):
    alert = event.get_json()

    await request_access_and_wait({
        "sp_object_id": INCIDENT_RESPONSE_SP_ID,
        "scope": alert["resource_id"],
        "role": "Reader",
        "duration_minutes": 120,
        "workflow_id": f"incident-{alert['id']}",
    })

Audit Trail

Grant and revocation activities attempt correlated writes to a custom Log Analytics table (ZSPAudit_CL) via the Azure Monitor Ingestion API. The pipeline uses a Data Collection Endpoint (DCE) and Data Collection Rule (DCR) to route structured audit events into Log Analytics. This is critical for NHI access since there’s no human to ask “why did you need this?”

Every new event also carries LifecycleId, the Durable orchestration instance ID, and EntitlementId, the deterministic admin owner key or complete Azure role-assignment resource ID. That pair is the exact correlation key for a grant and its revoke; principal and target are not unique across repeated lifecycles.

What Gets Logged

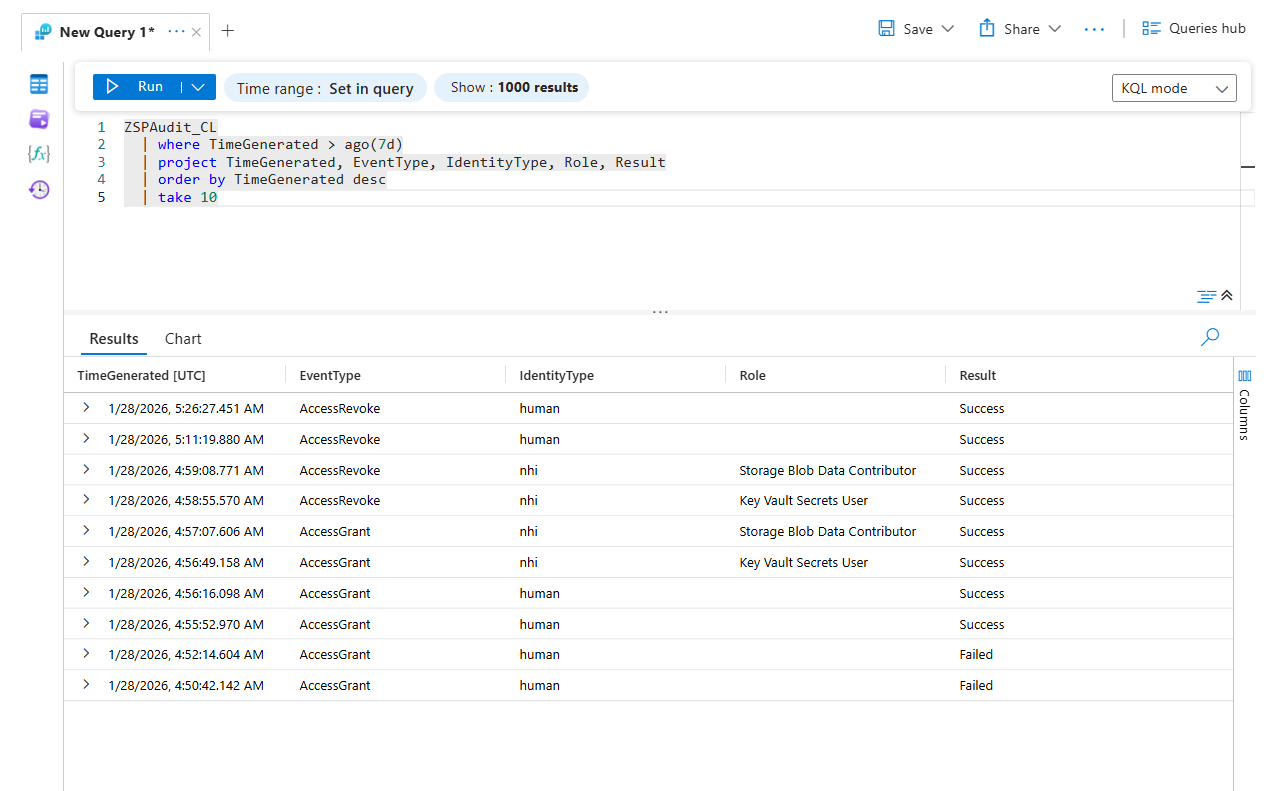

Successful audit ingestion produces entries in ZSPAudit_CL; transport failures are not proof that a row arrived. This illustrative pair is synthesized in the current schema using historical example timestamps; it was not captured from a deployment (identifiers are placeholders):

{
  "TimeGenerated": "2026-01-28T04:56:49.158538Z",
  "EventType": "AccessGrant",
  "IdentityType": "nhi",
  "PrincipalId": "<backup-service-principal-object-id>",
  "Target": "/subscriptions/.../Microsoft.KeyVault/vaults/zsp-lab-kv",
  "TargetType": "AzureResource",
  "Role": "Key Vault Secrets User",
  "DurationMinutes": 2,
  "WorkflowId": "nightly-backup",
  "LifecycleId": "b10a200905204d0bb10d54fc4e1a73e0",
  "EntitlementId": "/subscriptions/<subscription-id>/.../providers/Microsoft.Authorization/roleAssignments/<assignment-guid>",
  "ExpiresAt": "2026-01-28T04:58:48.598527+00:00",
  "Result": "Success"
}

{
  "TimeGenerated": "2026-01-28T04:58:55.570995Z",
  "EventType": "AccessRevoke",
  "IdentityType": "nhi",
  "PrincipalId": "<backup-service-principal-object-id>",
  "Target": "/subscriptions/.../Microsoft.KeyVault/vaults/zsp-lab-kv",
  "TargetType": "AzureResource",
  "Role": "Key Vault Secrets User",
  "LifecycleId": "b10a200905204d0bb10d54fc4e1a73e0",
  "EntitlementId": "/subscriptions/<subscription-id>/.../providers/Microsoft.Authorization/roleAssignments/<assignment-guid>",
  "ExpiresAt": "2026-01-28T04:58:48.598527+00:00",
  "Result": "Success"
}

These synthesized timestamps span about two minutes. They illustrate the schema and do not prove live cleanup timing or effective authorization changes.

Useful KQL Queries

All NHI access grants (last 24 hours):

ZSPAudit_CL
| where TimeGenerated > ago(24h)
| where IdentityType == "nhi"
| where EventType == "AccessGrant"
| project TimeGenerated, PrincipalId, Target, Role, DurationMinutes, WorkflowId, LifecycleId, EntitlementId
| order by TimeGenerated desc

NHI access outside expected windows:

ZSPAudit_CL
| where IdentityType == "nhi"
| where EventType == "AccessGrant"
| extend Hour = datetime_part("hour", TimeGenerated)
| where Hour < 1 or Hour > 3  // Expected window is 1-3 AM
| project TimeGenerated, PrincipalId, Target, WorkflowId, LifecycleId, EntitlementId

Unusual access patterns (more than 5 grants per hour for same SP):

ZSPAudit_CL
| where TimeGenerated > ago(7d)
| where IdentityType == "nhi"
| where EventType == "AccessGrant"
| summarize count() by bin(TimeGenerated, 1h), PrincipalId
| where count_ > 5

WorkflowId explains which automation requested access. LifecycleId plus EntitlementId correlates the recorded grant and successful revoke for that exact lifecycle; the audit record does not prove current resource authorization. The lab’s overdue-grant hunt uses a leftanti join on both keys. Older rows missing either key are labeled LegacyUncorrelated and sent to manual review; they are never guessed into a match using principal and target.

Bonus: This Also Works for Human Admins

The same gateway handles temporary admin access via Entra group membership. The pattern is simpler: empty security groups hold directory roles, and the gateway temporarily adds users.

How Admin Access Works

1. Create Entra security groups like SG-Intune-Admins-ZSP and assign them directory roles
2. Groups start empty - no one has the role
3. Admin calls /api/admin-access with justification
4. A Durable Entity claims the user/group owner lock; a concurrent lifecycle for the same pair is rejected
5. The lifecycle adds the user, reports active status, waits, verifies exact ownership, removes the membership, and releases the lock

ADMIN_RESPONSE="$(curl --fail --silent --show-error --connect-timeout 10 --max-time 60 --max-redirs 0 -X POST "$FUNCTION_URL/api/admin-access" \
  -H "Content-Type: application/json" \
  -H "x-functions-key: $FUNCTION_KEY" \
  -d '{
    "user_id": "YOUR_USER_OBJECT_ID",
    "group_id": "INTUNE_ADMIN_GROUP_ID",
    "duration_minutes": 15,
    "justification": "Deploying new compliance policy - INC0012345"
  }')" || exit 1

ADMIN_STATUS_URL="$(lifecycle_status_url "$ADMIN_RESPONSE")" || exit 1

The HTTP 202 response only accepts the request. Reuse wait_for_lifecycle "$ADMIN_STATUS_URL" active 90, which sends X-Functions-Key, and verify the exact user/group membership before administrative work. The restricted status projection intentionally omits admin membership details.

Owner Lock and Manual Recovery

Microsoft Graph does not attach a per-membership owner token to a group edge. The lab therefore serializes each user/group pair through an admin_entitlement_owner Durable Entity. The lifecycle verifies the exact orchestration owner before compensation or expiry revocation, and retains the lock when safe cleanup cannot be proven.

If the entity confirms another owner, status becomes ownership_lost. If owner verification itself throws, status becomes ownership_unverified. Both paths attempt a correlated failed-revoke audit event, retain the lock, and deliberately leave the membership untouched. Stop new requests for that pair. Correlate the instance history, Entra audit logs, and current membership; manually remove the member only if the failed lifecycle created it. Once the entitlement is confirmed absent, repair or purge that owner entity (or reset/redeploy the task hub in this disposable lab), then verify again. Never clear the lock first, and never change privileged ZSP group memberships manually while a lifecycle is active.

This gateway manages group membership directly rather than using PIM eligible assignments. Its role-assignable groups and allowed roles must remain explicitly constrained, and the Tier 0 broker remains a standing-privilege boundary.

Deploying the Lab

Prerequisites

• Azure subscription with Owner access
• Azure CLI configured (az login)
• PowerShell 7+ (pwsh)
• Entra ID P1 or P2 license (for group-based role assignment)
• Privileged Role Administrator directory role (required to create role-assignable Entra groups)

Lifecycle v2 Migration Comes First

The current source retires the old access_lifecycle_orchestrator and revocation_orchestrator handlers. Legacy in-flight histories and timers cannot replay those handlers after the new code is deployed. For an existing app, restrict new admission and the backup timer while the old workers drain; inventory all instances and reconcile their exact group memberships and RBAC assignments, including failed or terminated instances. Verify cleanup in Azure/Graph and rotate previously exposed Durable extension system keys before reopening admission. Neither this source update nor a timer’s elapsed duration performs or proves that work. Previously issued keys remain usable until actually rotated.

For a fresh app, verify that the task hub has no legacy histories. Read the pinned lifecycle migration runbook before supplying -ConfirmLifecycleMigration. The switch is an acknowledgement, not an inventory, drain, cleanup, or key-rotation check. It gates all changes, including runs with -SkipFunctionDeploy; direct publishing still requires the same operator migration process.

Quick Start

Live-mutation warning: Deploy-Lab.ps1 has no -WhatIf mode. It performs live Azure, Microsoft Graph, Entra directory-role, RBAC, Function deployment, and smoke-test operations. Verify the active subscription and tenant, inspect every parameter, confirm the Tier 0 permission boundary, and use an isolated lab environment before running it.

# From a local checkout of this repository:
cd labs/zsp-azure
pwsh ./scripts/Deploy-Lab.ps1 -ConfirmLifecycleMigration

After the operator migration work, the script:

1. Deploys Azure resources via Bicep (Resource Group, Key Vault, Storage, Function App, Log Analytics, DCE)
2. Creates Entra ID objects (ZSP groups, directory role assignments, backup SP)
3. Creates the ZSPAudit_CL custom table and Data Collection Rule (DCR)
4. Grants Graph API permissions and RBAC roles to the Function App managed identity
5. Configures Function App settings with Entra object IDs, DCR endpoint, and schedule
6. Deploys Function code
7. Runs a smoke test

Run the Canonical Smoke Test

The deployment script runs this test with its verified outputs and ordinary host Function key. For a later rerun, securely load that key into $FunctionKey and use the original .zsp-deployment.json manifest plus the exact resource IDs:

./scripts/Test-Lab.ps1 `
  -FunctionAppUrl "https://<project>-gw-<suffix>.azurewebsites.net" `
  -FunctionAppResourceId "/subscriptions/<sub>/resourceGroups/<project>-rg/providers/Microsoft.Web/sites/<function-app>" `
  -ManifestPath "./.zsp-deployment.json" `
  -FunctionKey $FunctionKey `
  -BackupSpObjectId "<backup-sp-object-id>" `
  -KeyVaultResourceId "/subscriptions/<sub>/resourceGroups/<project>-rg/providers/Microsoft.KeyVault/vaults/<keyvault-name>" `
  -WaitForRevocation

The script checks the active account, manifest and live resource-group ownership, and exact ARM Function hostname before sending the key. It authenticates every poll and refuses redirects or an unexpected status URL. The key must authorize both the admission and status routes; a key limited to a different individual Function may not work. Do not substitute a Durable extension or host master key.

Test NHI Access

After deployment, use its verified resource values and securely retrieve the ordinary host Function key. Reuse the validation/polling helpers from The Request above:

FUNCTION_URL="https://<project>-gw-<suffix>.azurewebsites.net"
FUNCTION_KEY="<ordinary host Function key retrieved securely>"
BACKUP_SP_ID="<from deployment output>"
KEYVAULT_ID="<from deployment output>"

NHI_RESPONSE="$(curl --fail --silent --show-error --connect-timeout 10 --max-time 60 --max-redirs 0 -X POST "$FUNCTION_URL/api/nhi-access" \
  -H "Content-Type: application/json" \
  -H "x-functions-key: $FUNCTION_KEY" \
  -d '{
    "sp_object_id": "'"$BACKUP_SP_ID"'",
    "scope": "'"$KEYVAULT_ID"'",
    "role": "Key Vault Secrets User",
    "duration_minutes": 10,
    "workflow_id": "manual-test"
  }')" || exit 1

STATUS_URL="$(lifecycle_status_url "$NHI_RESPONSE")" || exit 1

Use the authenticated helper, then verify the exact assignment in Azure:

STATUS="$(wait_for_lifecycle "$STATUS_URL" active 90)" || exit 1
ASSIGNMENT_ID="$(printf '%s' "$STATUS" | jq -er '.customStatus.grants[0].assignment_id')" || exit 1

HTTP 202 alone does not prove that the role exists. The lifecycle schedules revocation after ten minutes, subject to working history, handlers, permissions, and ownership. Neither a timeout nor a terminal orchestration state proves removal.

Verify Revocation

STATUS="$(wait_for_lifecycle "$STATUS_URL" revoked 900)" || exit 1
az role assignment list --assignee "$BACKUP_SP_ID" --scope "$KEYVAULT_ID" --output json \
  | jq --exit-status --arg id "$ASSIGNMENT_ID" '[.[] | select((.id | ascii_downcase) == ($id | ascii_downcase))] | length == 0'

This tests absence of the lifecycle’s exact assignment. Unrelated baseline roles may remain; also test that the target resource now denies the relevant operation.

For full deployment details, troubleshooting, and cleanup instructions, see the companion lab.

The current API returns no Durable management key or management URLs. Send the ordinary Function key only in X-Functions-Key, including on status polls. The status route rejects query parameters and exposes only bounded, policy-scoped state and matching deterministic NHI assignment IDs; raw input, output, errors, and admin user/group details are omitted. Shared Function keys authenticate possession, not an individual user identity. Use separate operator Azure access for full history or legacy-instance investigation.

Production Considerations

Authentication

The lab uses function keys for simplicity. For production, enable Entra authentication on the Function App and require OAuth tokens from approved clients.

Approval Workflows

Add human-in-the-loop for sensitive roles:

async def request_with_approval(request):
    if request.role in ["Contributor", "Owner"]:
        # Create approval request in Teams/ServiceNow
        return {"status": "pending_approval", "approval_id": "..."}
    else:
        # Auto-approve low-risk roles
        return await grant_access(request)

Break-Glass Accounts

Follow Microsoft’s emergency-access guidance: maintain at least two cloud-only emergency accounts with permanent active Global Administrator assignments, independent phishing-resistant authentication, securely stored credentials, monitoring for every use, and regular access tests. Their access must remain available if the gateway or normal activation path fails.

Scope Constraints

In production, the gateway should enforce allowed scopes per service principal. Don’t let any SP request any role on any resource-maintain an allowlist.

Key Takeaways

1. NHIs are a distinct risk surface. Do not apply a generic industry ratio to service principals alone. Inventory your own service principals, managed identities, workload identities, agent identities, credentials, and effective permissions; Microsoft’s non-human identity inventory explicitly separates risky, highly privileged, overprivileged, and unused populations.

2. AI agents amplify the problem. Agentic workflows that chain Azure services need scoped, temporary access-not standing Contributor roles.

3. The gateway pattern centralizes control. The Function identity manages the lab’s role assignments. Shared-key callers remain restricted by global lab allowlists; production requires caller-specific authorization.

4. Schedule and verify revocation. Durable history supports replay with compatible handlers; exact entitlement checks, monitoring, and recovery remain necessary.

5. Serialize human membership ownership. A Durable Entity owner lock prevents overlapping user/group lifecycles and blocks unsafe revocation when ownership cannot be proven.

6. Audit request purpose and exact lifecycle identity. WorkflowId explains the automation; LifecycleId plus EntitlementId correlates one grant with its revoke without guessing.

7. This also works for humans. The same gateway handles the lab’s admin group memberships and scoped workload entitlements.

Resources

• Lab: Zero Standing Privilege Gateway
• Microsoft Graph PIM APIs
• Zero Standing Privileges - Cloud Security Alliance
• Azure Durable Functions
• Azure Monitor Logs Ingestion API
• Azure Built-in Roles Reference
• Bicep Documentation

Jerrad Dahlager, CISSP, CCSP

Cloud Security Architect · Adjunct Instructor

Marine Corps veteran and firm believer that the best security survives contact with reality.

Have thoughts on this post? I'd love to hear from you.

LinkedIn Email Me

You might also like

Identity Security

March–June 2026 Entra ID Changes: Passkey Profiles and Conditional Access Enforcement

Audit Entra passkey-profile migration and the June 2026 Conditional Access …

13 min read

Identity Security

Entra SSPR and Passkey Readiness for Microsoft-Provided SMS/Voice Delivery Retirement

Prepare Microsoft Entra for September passkey expansion, evolving 2026 SSPR …

18 min read

AI Security

Securing the Agentic Workforce: Microsoft's Zero Trust for AI Agents

Building with AI agents? Here's how Microsoft is securing them. Entra Agent ID, …

8 min read
